Penstocks Design

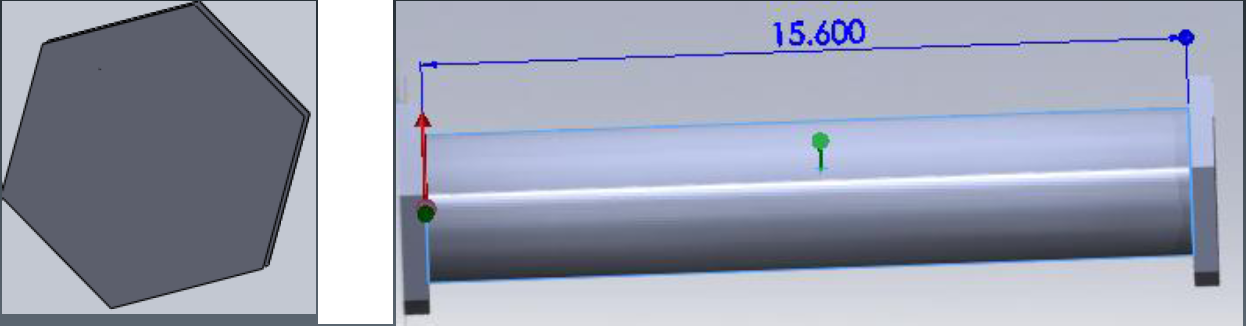

Connector between Hinge and Power crew
crewIt has a six fold from the both sides.The diameter for six folds is 4cmIts thickness is 0.5cmThe cylindrical shape it is in the meddle between the six folds.It has a diameter with 3cm, and extruded 15.6cm
It will connect the power screw with the hinge.
