Penstocks Design

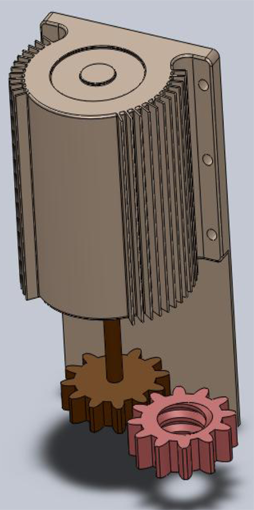

Motor is been installed to provide the required force to open and close the gate.
The motion will be transferred through two gears. One of the gears will have a thread surface inside that the stem will move in it, the other gear will be attached to the motor.
The stem length is 2.25 m and has 109 rev with
An angle of 90
the motor shaft is 50 cm length and 2.5 cm Diameter.
