Material Properties for the wheels
Mesh Information
| property |
Value |
Units |
| Elastic Modulus |
2e+011 |
N/m^2 |
| Poisons Ratio |
0.29 |
N/A |
| Shear Modulus |
7.8e+010 |
N/m^2 |
| Density |
7900 |
kg/m^3 |
| Tensile Strength |
420507000 |
N/m^2 |
| Compressive Strength in X |
|
N/m^2 |
| Yield Strength |
351571000 |
N/m^2 |
| Thermal Expansion Coefficient |
1.5e-005 |
/K |
| Thermal Conductivity |
47 |
W/(m·K) |
|
Specific Heat |
440 |
J/(kg·K) |
| Material Damping Ratio |
|
N/A |

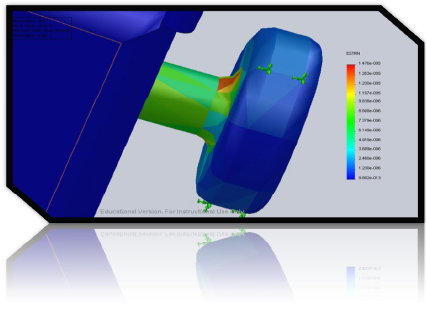

Fig (xiii): Stress analysis of the wheels.
