Ductile iron:
| Elastic Modulus |
1.2e+011 |
N/m^2 |
| Poisons Ratio |
0.31 |
N/A |
| Shear Modulus |
7.7e+010 |
N/m^2 |
| Density |
7100 |
kg/m^3 |
| Tensile Strength |
861695000 |
N/m^2 |
| Compressive Strength in X |
|
N/m^2 |
| Yield Strength |
551485000 |
N/m^2 |
| Thermal Expansion Coefficient |
1.1e-005 |
/K |
| Thermal Conductivity |
75 |
W/(m·K) |
Specific Heat |
450 |
J/(kg·K) |
| Material Damping Ratio |
|
N/A |

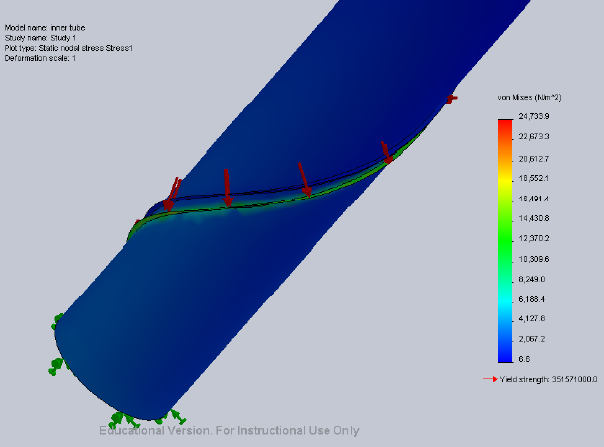

Fig (xvi): Static nodal stress of the inner tubing.
