New Concept Wheel Chair
Stress Analysis

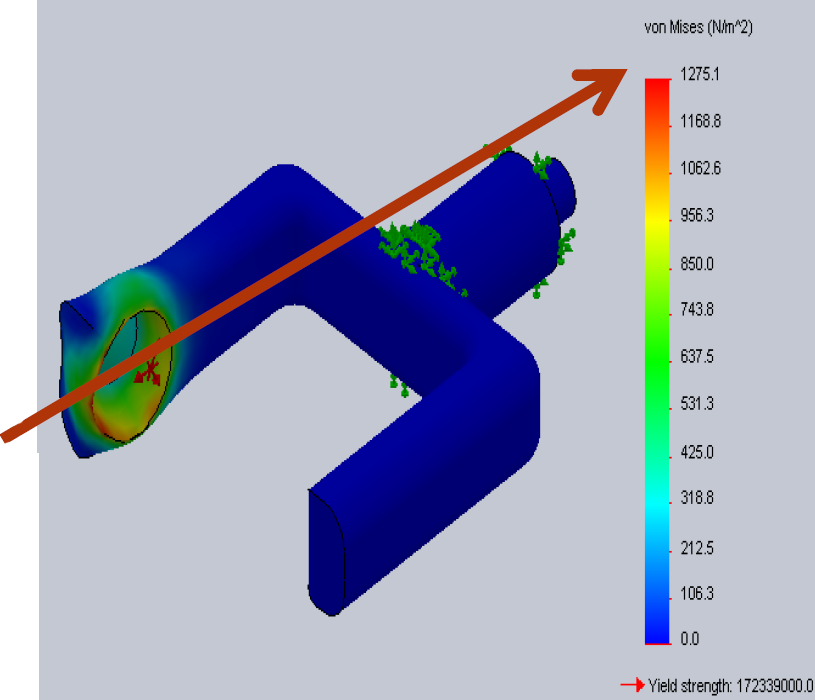

As you can see front wheel holder we did stress analysis based on selected material ( AISI 1020 ).
The results shows the highest stress is 1.275 Mpamuch less than Sy
Sy= 172.339 MPa
Very safe design
